How to Use Math Input Panel in Windows 11 and Windows 10

“Math Input Panel” is missing from Windows 11, leaving you without the standalone handwriting tool found in older Windows versions. Word and PowerPoint provide its closest replacement through Ink Equation.

Fix #1: Use Ink Equation in Word or PowerPoint

Ink Equation converts handwritten expressions into formatted equations. It works with a mouse, but a touchscreen or pen tablet such as a Wacom pen tablet makes writing much easier.

1. Open Microsoft Word or PowerPoint.
2. Place the cursor where you want the equation.
3. Select Insert > Equation.
4. Open the Equation menu and select Ink Equation.

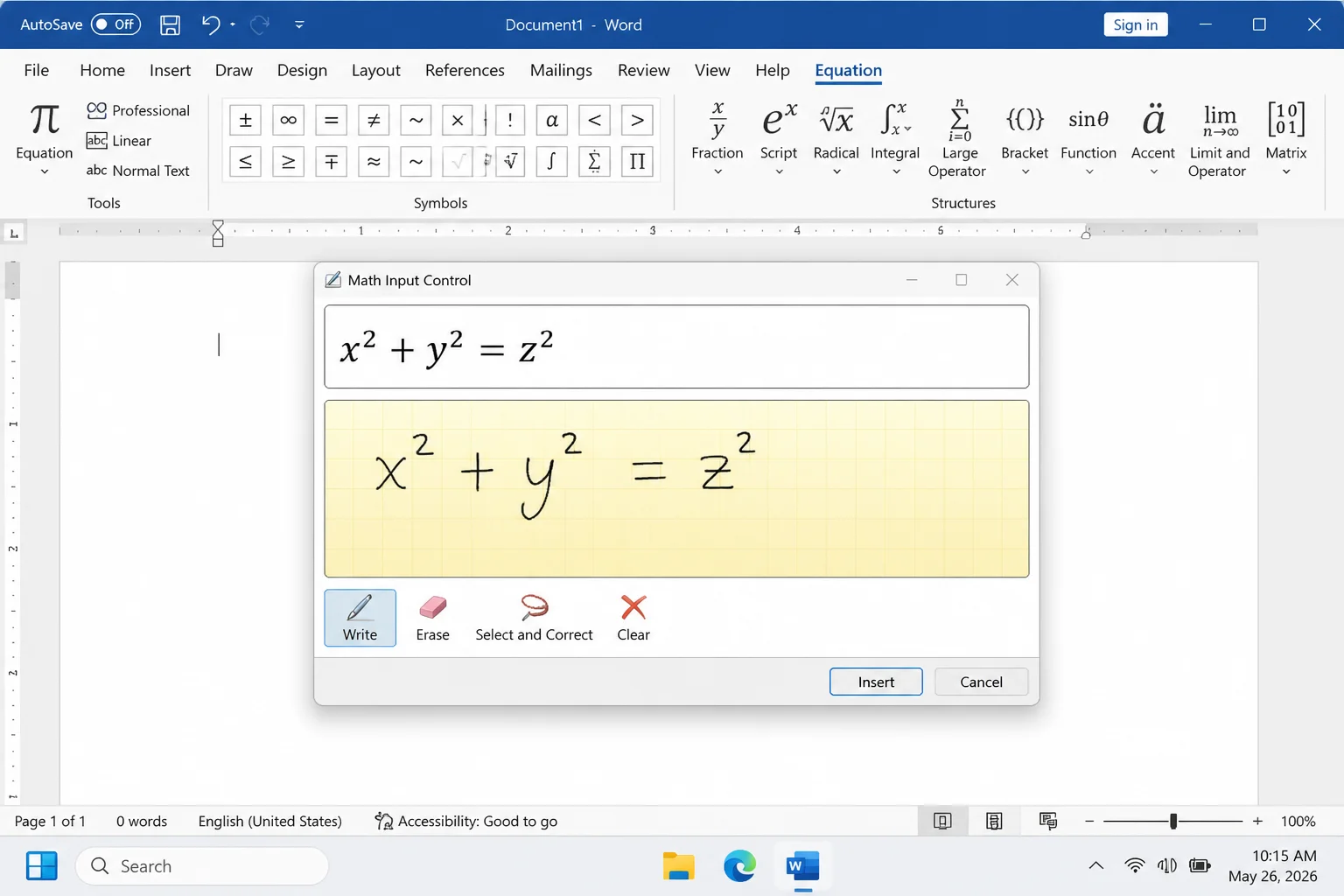

5. Write the complete expression in the handwriting area.

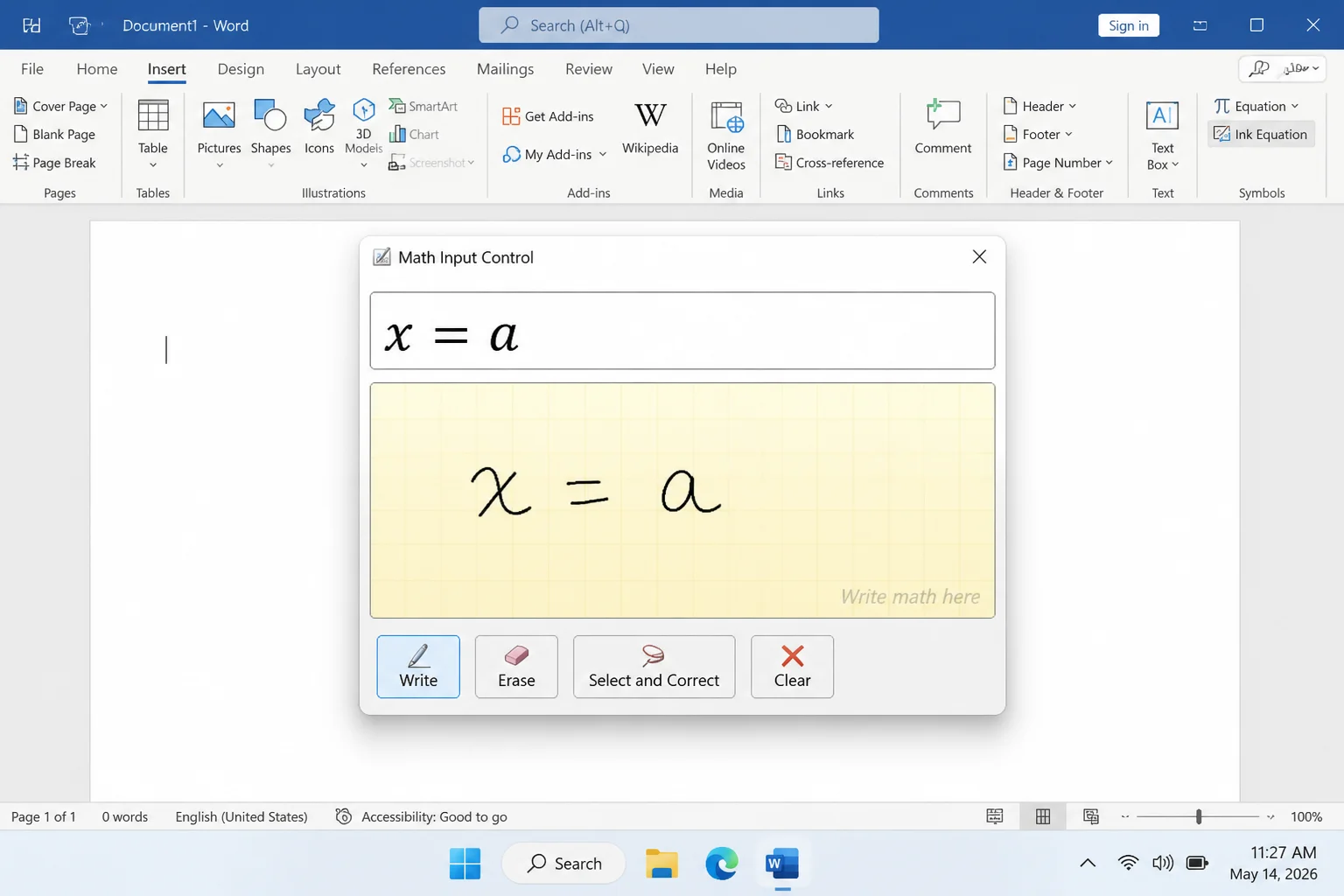

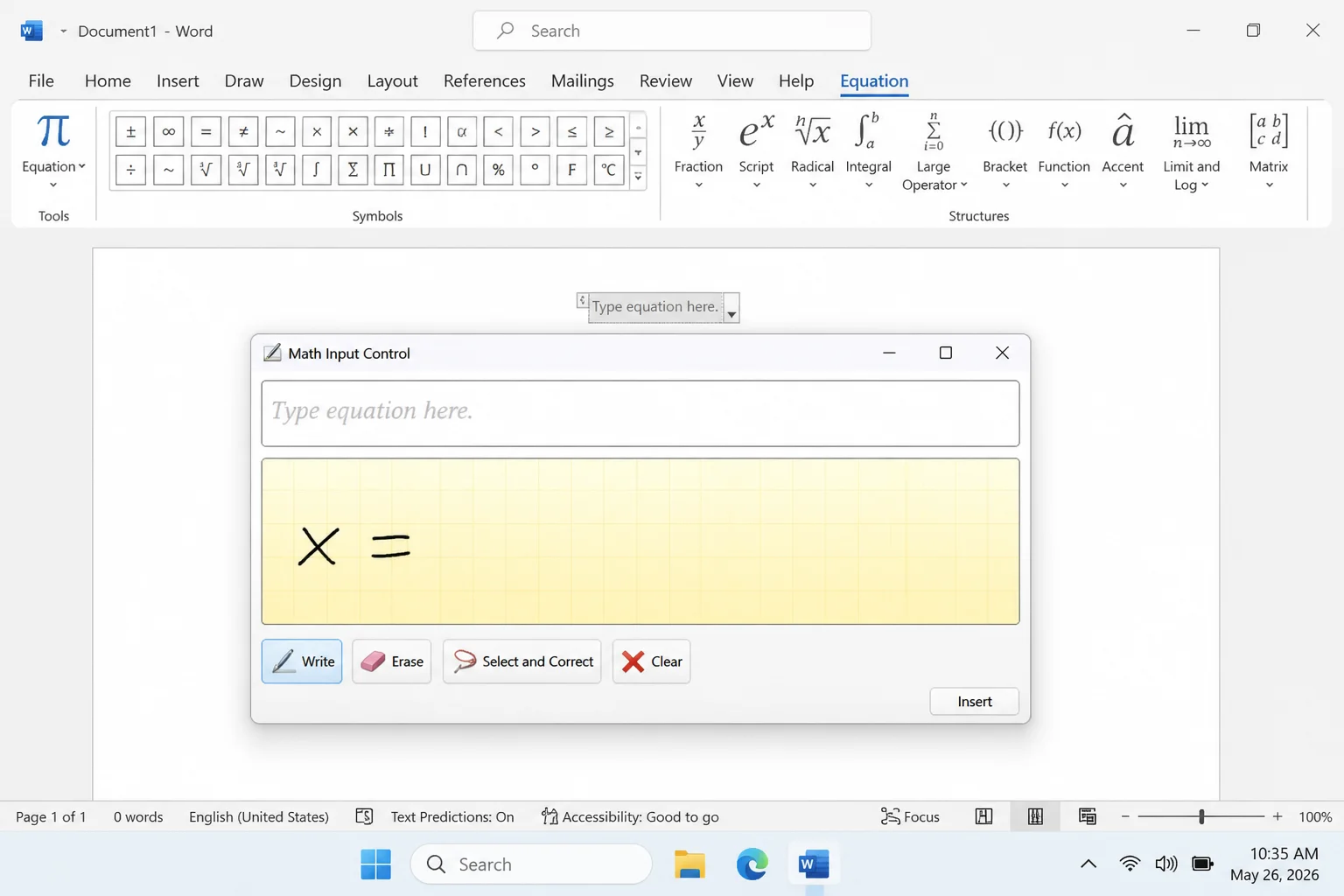

The preview should change as the app recognizes more of your expression. Finish writing before correcting individual symbols because the extra context improves recognition.

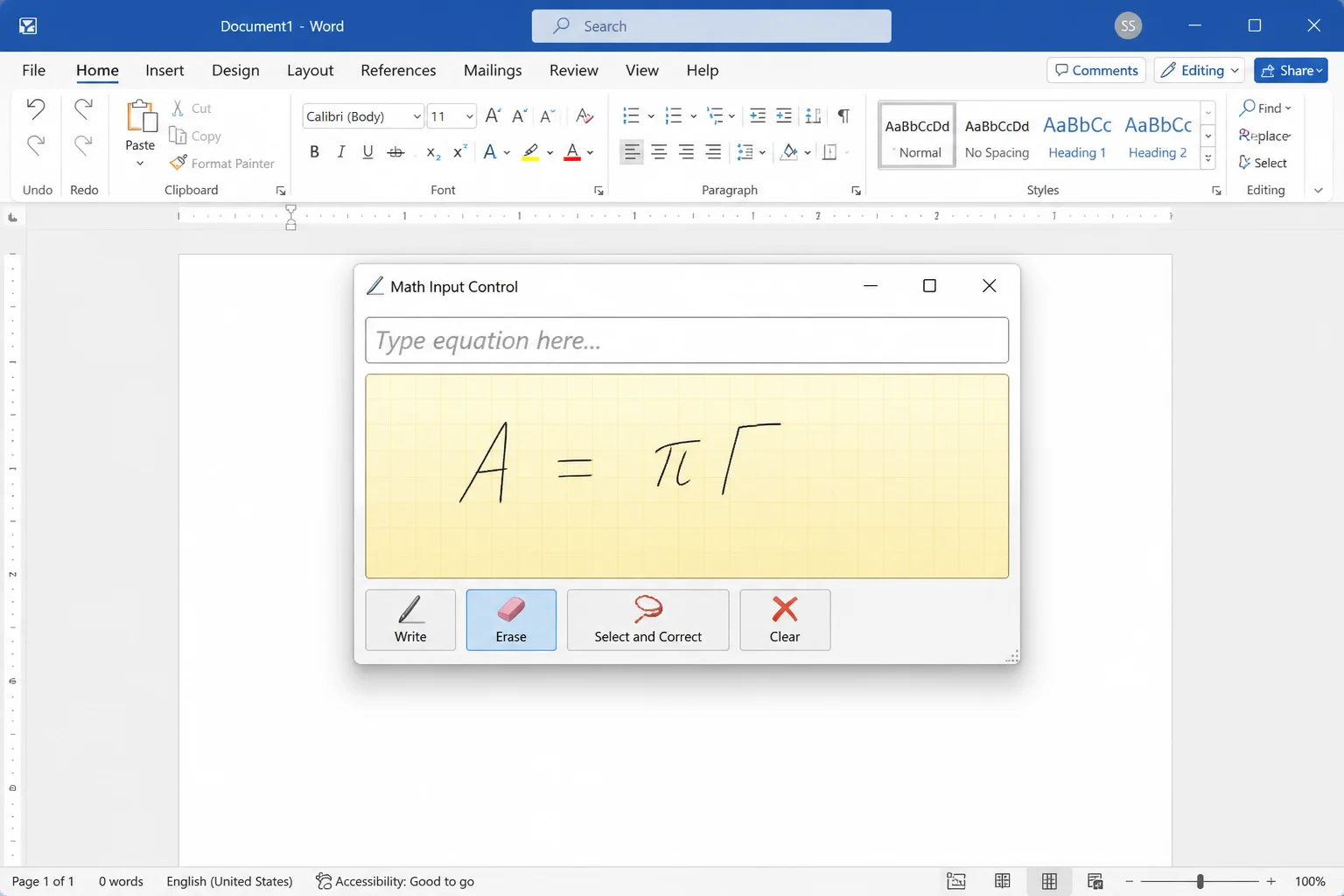

6. Select Erase and drag over any unwanted strokes.

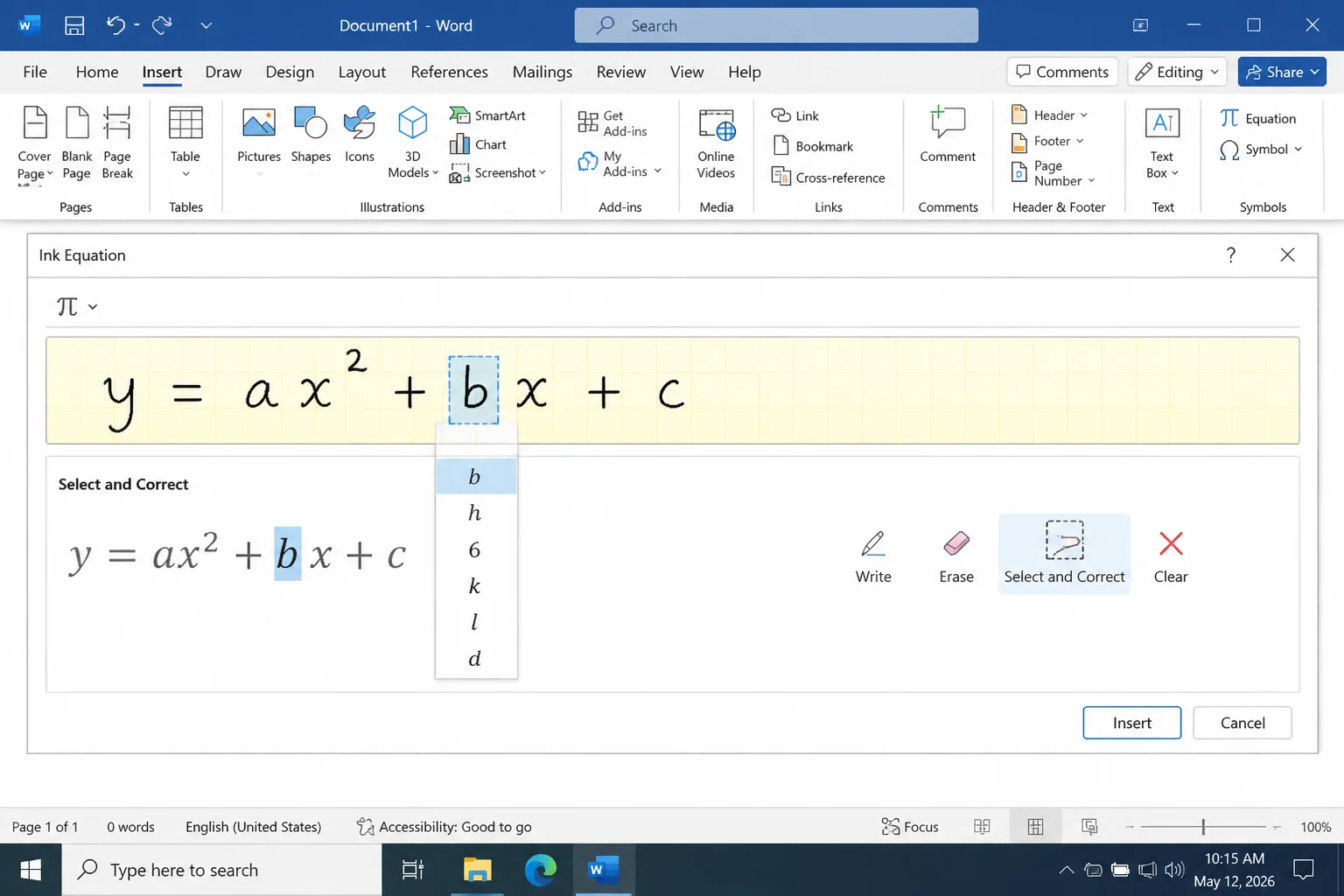

7. Select Select and Correct, click the misread symbol, and choose the intended symbol.

8. Select Insert after the preview matches your handwriting.

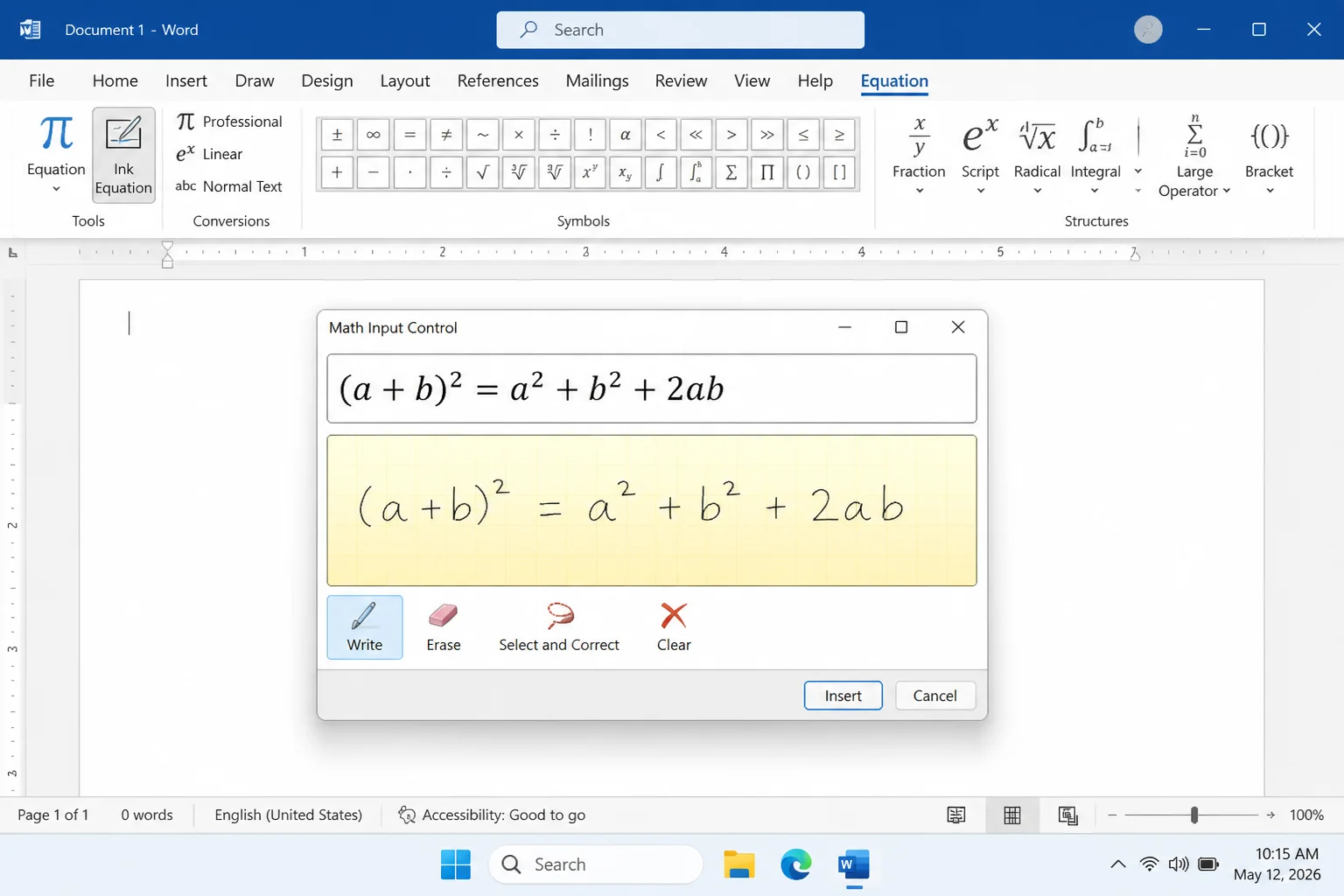

The equation should appear at the cursor as an editable Office equation.

Fix #2: Install Math Recognizer in Windows 11

Math Recognizer provides handwriting-recognition components to apps that support them. It doesn’t add the old standalone Math Input Panel to Windows 11.

1. Press Windows + I to open Settings.
2. Select Apps > Optional features.
3. Search the installed features for Math Recognizer.
4. Select the option to add an optional feature if Math Recognizer isn’t installed.
5. Search for Math Recognizer in the available features.
6. Select it and choose Install.
7. Restart Word or PowerPoint after installation.
8. Open Insert > Equation > Ink Equation and test your handwriting again.

The feature should now be available to compatible apps. Its displayed name or location can vary with your Windows language and current build.

Fix #3: Open Math Input Panel in Windows 10

Windows 10 can still provide the standalone Math Input Panel, depending on the installed build and optional features.

1. Press Windows + R.
2. Type winver and press Enter.
3. Confirm that the dialog identifies the system as Windows 10.

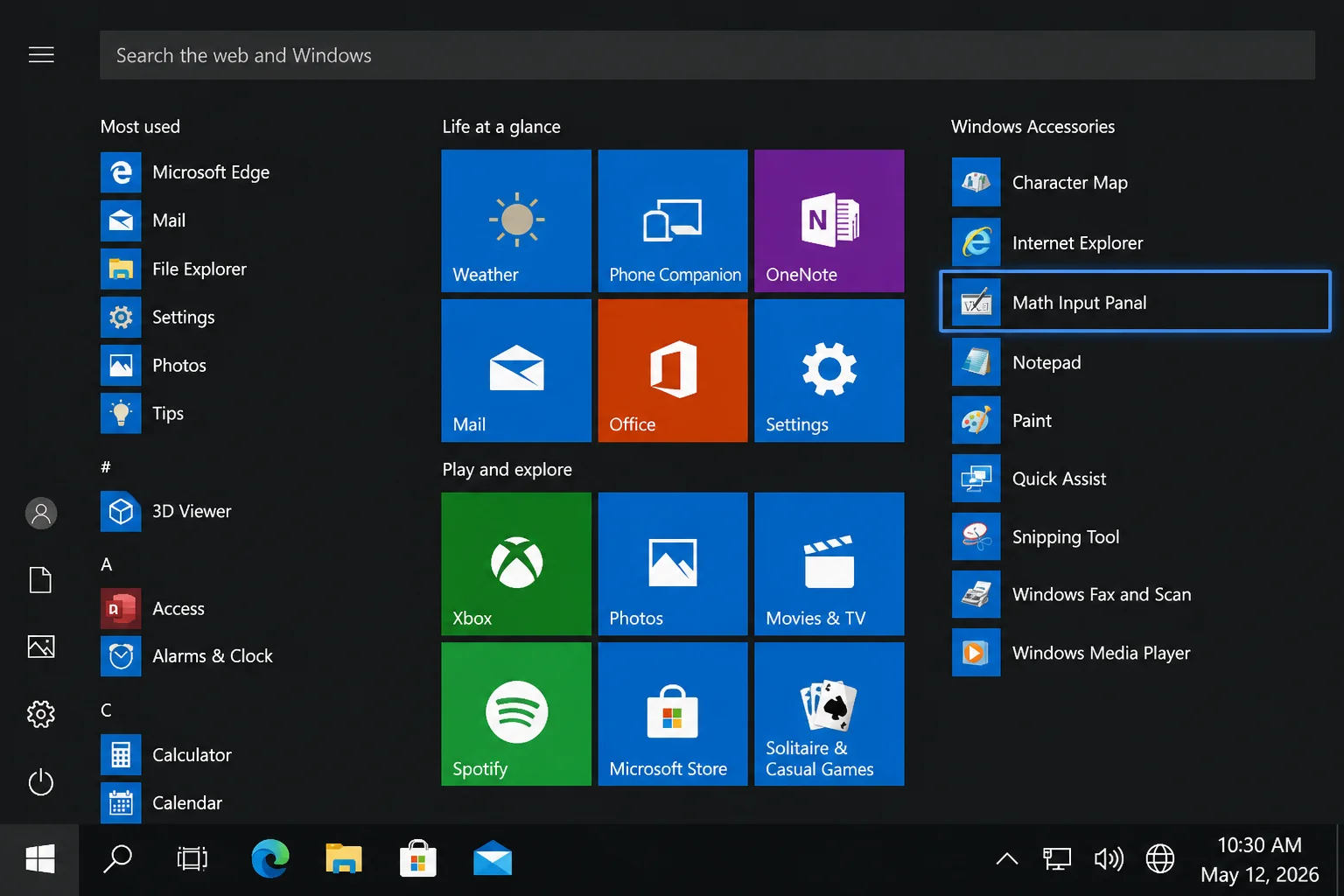

4. Open Start and search for Math Input Panel.

5. Select Math Input Panel if it appears.
6. If search doesn’t find it, press Windows + R.
7. Type mip.exe and press Enter.

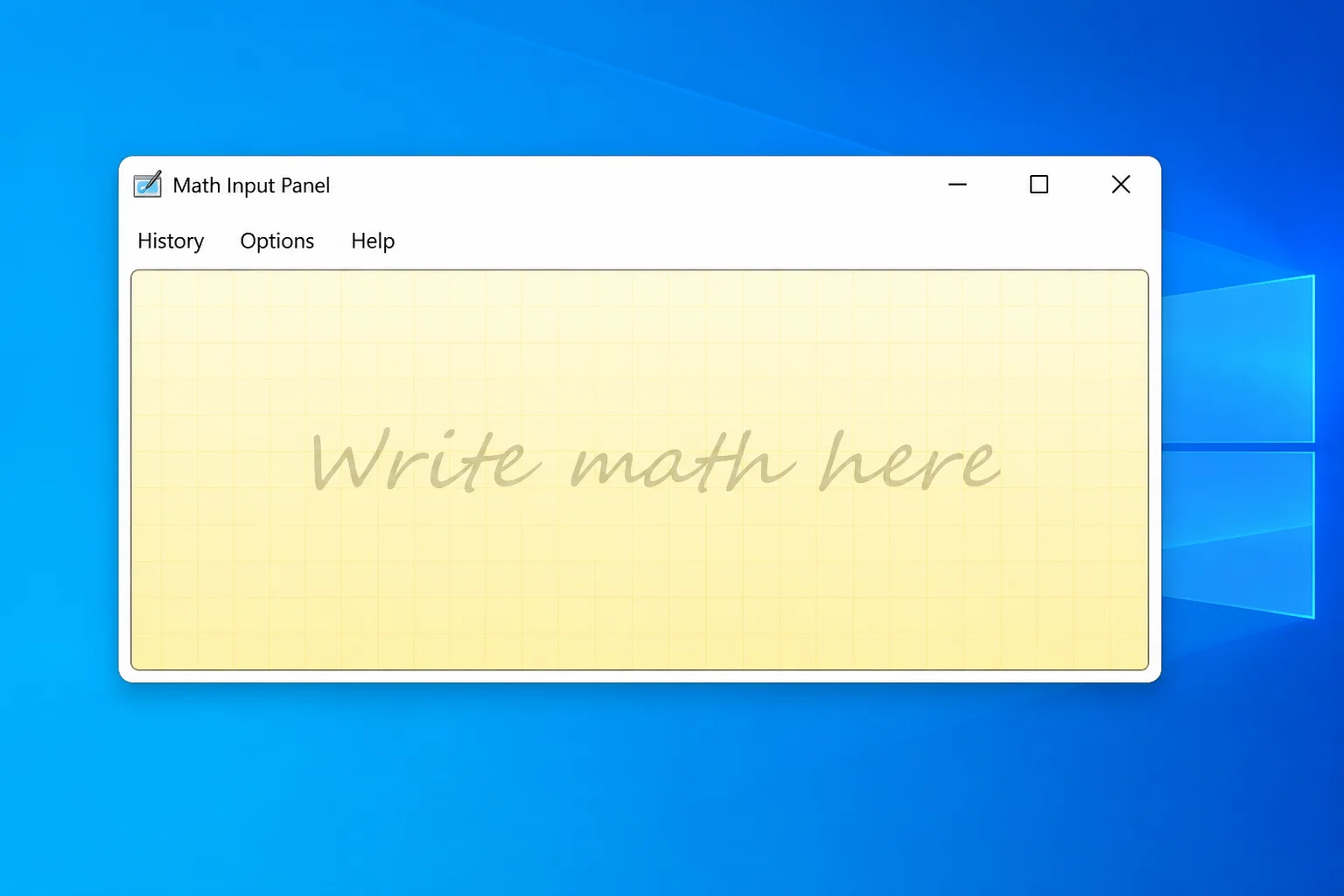

A blank handwriting area labeled Write math here should open. Some Windows 10 installations place the required components under the Math Recognizer optional feature instead.

Fix #4: Add Math Recognizer in Windows 10

Install Math Recognizer if Windows 10 can’t find mip.exe or the handwriting control is unavailable.

1. Press Windows + I to open Settings.
2. Open Apps.
3. Select Optional features.
4. Choose the option for adding a feature.
5. Search for Math Recognizer.
6. Select the feature and choose Install.
7. Restart the app where you plan to enter equations.

Math handwriting controls should become available to compatible programs. Some Windows 10 editions or managed business PCs may omit the standalone accessory even when the recognition component is installed.

Fix #5: Insert the equation into a compatible program

The classic Math Input Panel sends equations as MathML, or Mathematical Markup Language. Basic text editors such as Notepad can’t accept that formatted output.

1. Open Word or another program that supports MathML input.
2. Place the cursor at the intended insertion point.
3. Return to Math Input Panel.
4. Write the entire expression.
5. Correct any recognition errors with Erase or Select and Correct.
6. Select Insert.

The formatted equation should appear at the cursor. If nothing happens, use the equation editor built into the target program instead.

Fix #6: Use a formula editor when handwriting isn’t available

LibreOffice and Apache OpenOffice include formula editors and support MathML, but their normal workflow uses structured text rather than handwriting.

1. Open the program’s formula or equation editor.
2. Enter the expression using its supported formula syntax.
3. Check the rendered preview.
4. Insert or save the completed formula.

For browser-based work, a LaTeX or MathML equation editor is often quicker. Modern browsers can display equations produced through MathML or MathJax, though each editor has its own copy and export options.

Using Math Input Panel on Windows 7, 8, and 8.1

The standalone accessory remains present on these older Windows releases, but those operating systems no longer receive normal security support.

1. Open Start.
2. Search for Math Input Panel.
3. Select the app from the results.
4. Alternatively, press Windows + R, type mip, and press Enter.
5. Write the complete expression in the input area.
6. Correct any misread characters.
7. Open a MathML-compatible program and position its cursor.
8. Select Insert in Math Input Panel.

The equation should appear in the target program as formatted math.

When the fixes don’t work

If Math Recognizer isn’t listed, your PC may use a managed Windows image that blocks optional features. Contact the administrator responsible for the device, or use Word’s standard equation editor, OneNote’s math tools, or a browser-based LaTeX editor.

Conclusion

Fix #1, using Ink Equation in Word or PowerPoint, is the best option on Windows 11 and solves the missing Math Input Panel problem. If handwriting recognition still fails after installing Math Recognizer, use the app’s typed equation editor because the standalone Windows 11 accessory can’t be restored. You can also try using Microsoft OneNote for math tools. For more information on Math Input Panel, you can visit this page or this guide. Additionally, you can check out this resource for more details on the Math Input Panel.
