How to Configure Interrupt Request (IRQ) Priorities in Windows Vista and 7

Most components directly attached to your motherboard—including PCI slots, IDE controllers, serial ports, the keyboard port, and even your motherboard’s CMOS—have individual interrupt requests (IRQs) assigned to them.

An interrupt request line, or IRQ, is a numbered hardware line over which a device can interrupt the normal flow of data to the processor, allowing the device to function.

Windows Vista and 7 lets you prioritize one or more IRQs (which translate to one or more hardware devices), potentially improving the performance of those devices.  Below are basic registry editing tips that you can use to set IRQ priorities.

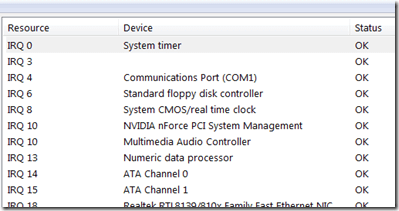

1. Start by opening the System Information utility (msinfo32.exe), and navigating to System Summary\Hardware Resources\IRQs to view the IRQs in use on your system, and the devices using them.


Take note of IRQ13 (Numeric Data processor) that we will use in this example:

2. Next, open the Registry Editor and navigate to

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\PriorityControl

3. Create a new DWORD value in this key, and call it IRQ#Priority, where
# is the IRQ of the device you wish to prioritize (e.g., IRQ13Priority for
IRQ 13, which is your numeric processor).

4. Double-click the new value, and enter a number for its priority. Enter 1
for top priority, 2 for second, and so on. Make sure not to enter the same priority number for two entries, and keep it simple by experimenting with only one or two values at first.

5. Close the Registry Editor and reboot your computer when you’re done.

Some users have gotten good results prioritizing IRQ 8 (for the system
CMOS) and the IRQ corresponding to the video card but the feedback is unconfirmed: http://www.neowin.net/forum/index.php?showtopic=486231

Do you think it is a placebo tweak? Post your comments!

Ben Carigtan shows you how it’s done!

Comments [2]

  1. Neeraj says:

    Yes, IRQ priority tweak is one of the best tweaks to get the most optimized performance from the component which we want the most. Usually the system CMOS is given a IRQ priority for better I/O functions. It can also help other software to function well. Its IRQ number is 8. IRQ numbers can also be found out by right clicking on My Computer icon on desktop> Manage> Device Manager. Now click on View button in the Main Menu and click on Resources by type.

  2. Doug Erb says:

    What is the point of prioritizing something that does not have competition for the irq?..Tell me how to prioritize one of two or three things that share same irq!
